Report parametersΒΆ

You can specify the parameters of the report. For example, the Customer purchases report of the Demo project has three parameters.

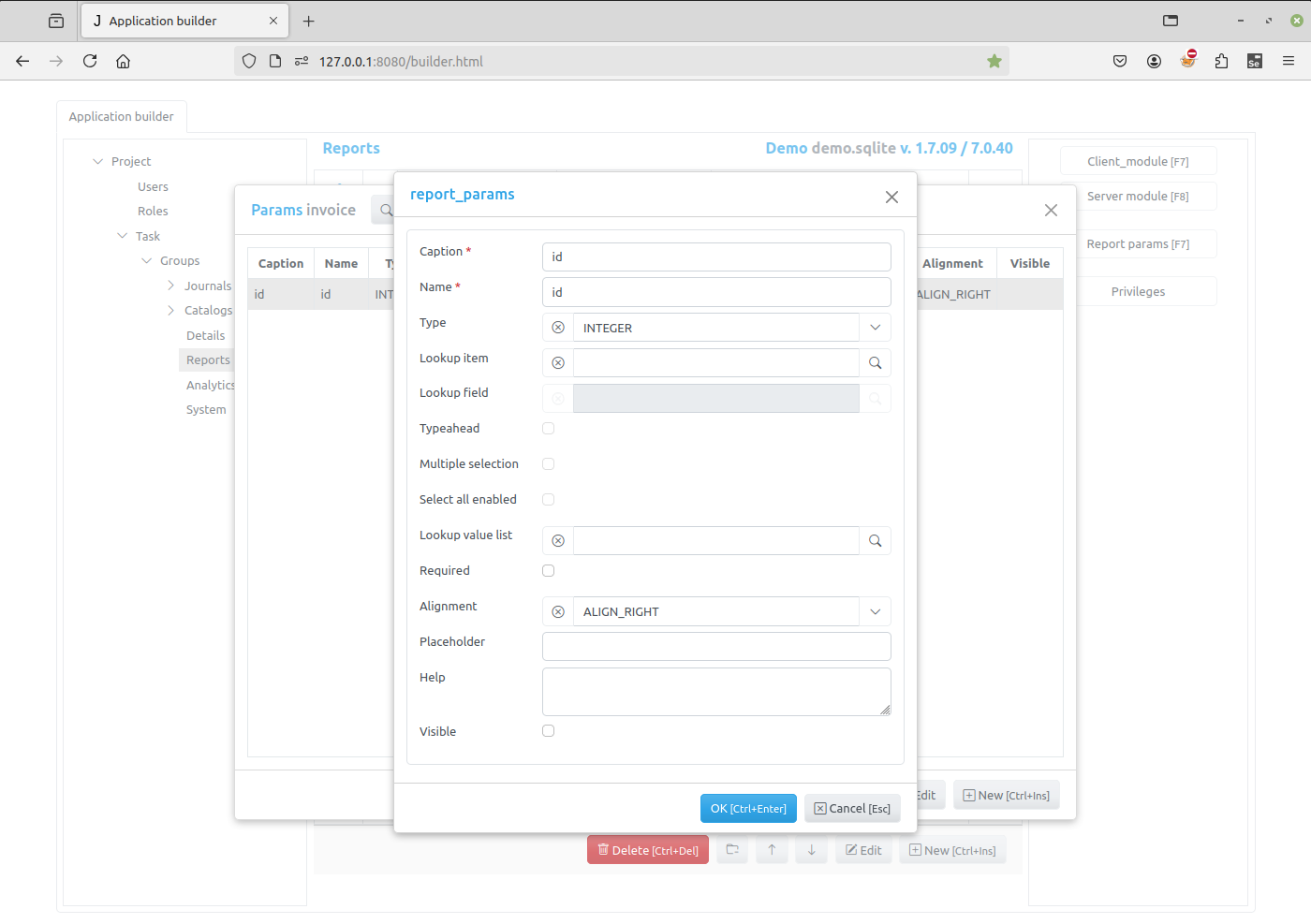

Report parameters

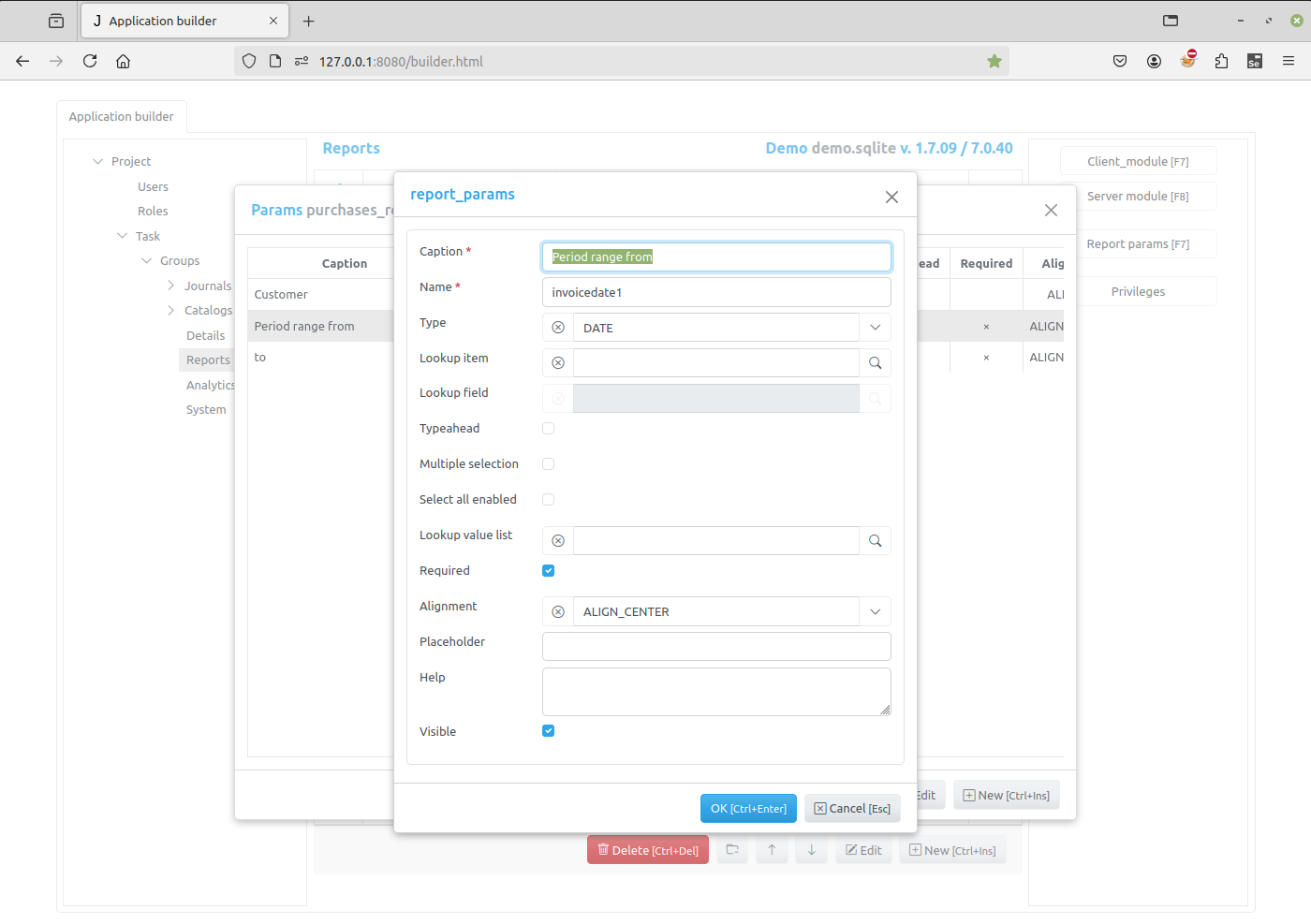

To add or change a report parameter click Report params button in the left panel of the Application builder. A form will appear displaying the list of existing parameters. Then click New or Edit button of the form to add or change the parameter.

Report param

The below can be specified:

  • Caption - the name of the parameter that appears to users

  • Name - the name of the parameter will be used in programming code to get access to the parameter object.

  • Type - the data type of the parameter

  • Lookup item - the item to select the parameter value from

  • Lookup field - the field in the lookup item

  • Typeahead - autocompletion/typeahead is enabled for the lookup field.

  • Multiple selection - Multiple selection is enabled.

  • Select all enabled - Select all is enabled.

  • Lookup value list - Lookup value list selection.

  • Required - if this checkbox is checked and Visible attribute is set, the client application will require a users to specify the parameter value before printing the report

  • Alignment - specifies how a value of the parameter will be aligned in the input element

  • Placeholder - use this attribute to specify the placeholder that will be displayed by the field input.

  • Help - if any text / html-message is specified, a question mark will be displayed to the right of the input, so when the user moves the mouse pointer over this mark, a pop-up window appears displaying this message.

  • Visible - the client application creates a form to specify the parameters before printing the report. If this checkbox is checked, the input element for this parameter will appear in the form

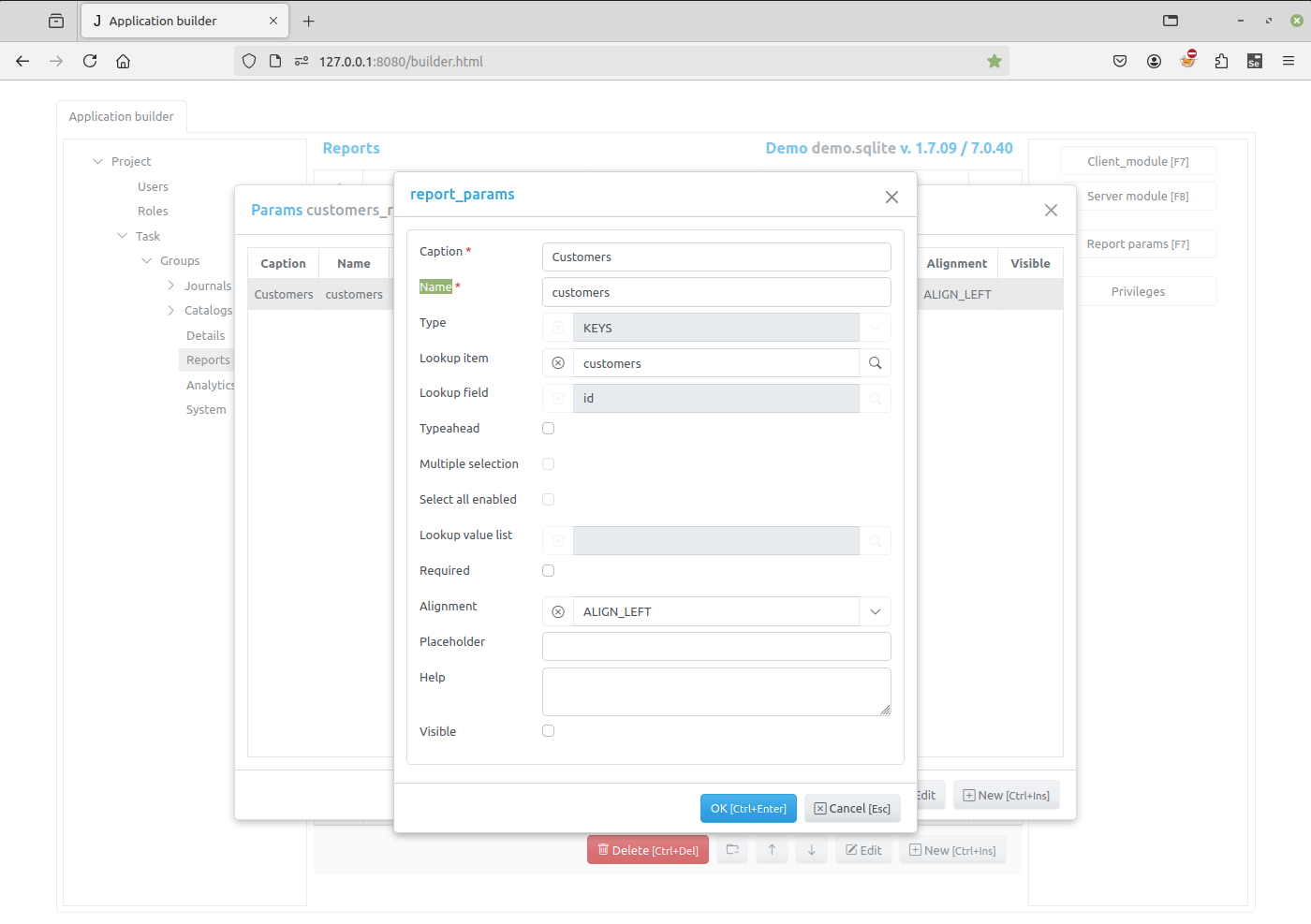

It it possible to create a lookup parameter. For example, the Customer purchases report has a Customer parameter that can be selected from Customers catalog:

Lookup parameter

In this case we should specify:

  • Lookup item - the item to select the parameter value from

  • Lookup field - the field in the lookup item

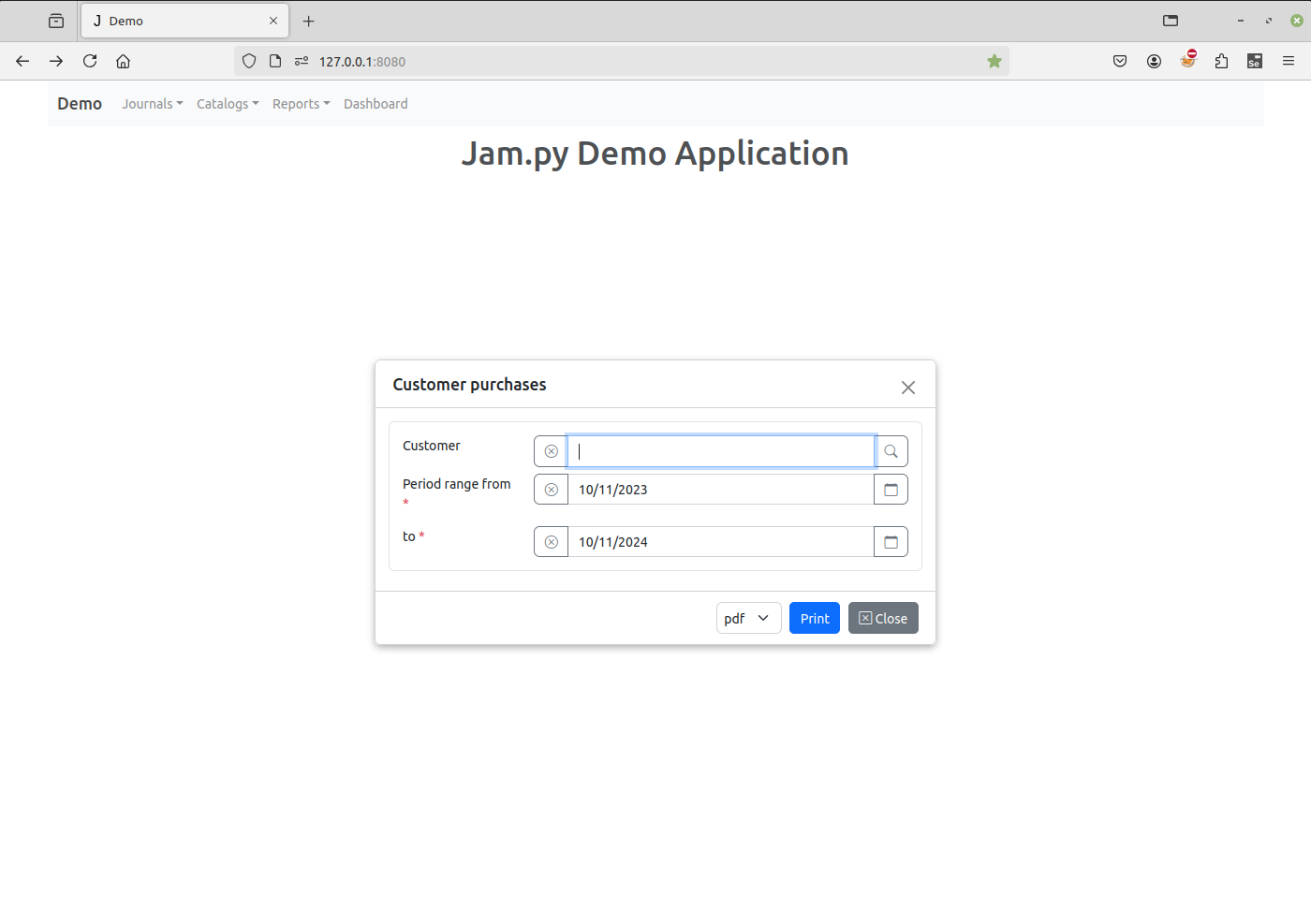

Form for setting the parameters of Customer purchases report is as follows:

Customer purchases parameters example
